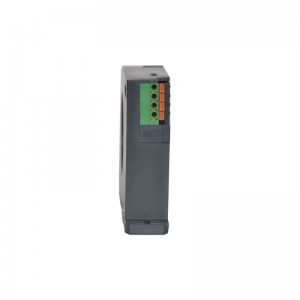

AC Current Transducer BA50-AIV
Characteristic
|
Model Name |
Input |
Output |
Perforation Hole Size(mm) |
|
|
AC Current |
DC Current |
DC Voltage |
||
|
BA05-AI/I |
0~(0.5~10)A |
4~20mA/0~20mA |
/ |
φ5 |
|
BA05-AI/V |
0~(0.5~10)A |
/ |
1~5V/0~5V |
|
|
BA10-AI/I |
0~(8~50)A |
4~20mA/0~20mA |
/ |
φ10 |
|
BA10-AI/V |
0~(8~50)A |
/ |
1~5V/0~5V |
|
|
BA20-AI/I |
0~(40~200)A |
4~20mA/0~20mA |
/ |
φ20 |
|
BA20-AI/V |
0~(40~200)A |
/ |
1~5V/0~5V |
|
|
BA50-AI/I |
0~(60~600)A |
4~20mA/0~20mA |
/ |
|
|
BA50-AI/V |
0~(60~600)A |
/ |
1~5V/0~5V |
|
|
BA50L-AI/I |
0~(0.1~1)A |
4~20mA/0~20mA |
/ |
|
|
BA50L-AI/V |
0~(0.1~1)A |
/ |
1~5V/0~5V |
|
Side View
|
Model Name |
Outline Size (mm) |
|||||
|
W |
H |
Φ |
M |
N |
L |
|
|
BA05-AI/I&BA05-AI/V |
35 |
69 |
5 |
62.5 |
76 |
22.5 |
|
BA10-AI/I&BA10-AI/V |
35 |
74 |
9.5 |
62.5 |
76 |
22.5 |
|
Model Name |
Outline Size (mm) |
|||||
|
W |
H |
Φ |
M |
N |
L |
|
|
BA20-AI/I&BA20-AI/V |
35 |
60 |
21 |
93 |
102 |
24 |
|
BA50-AI/I&BA50-AI/V |
35 |
84 |
50 |
125 |
135 |
24 |
|
BA50L-AI/I&BA50L-AI/V |
35 |
84 |
50 |
125 |
135 |
24 |
Wiring Terminals Overview of BA Series Current Transducer
Cable Wiring of BA Series Current Tranducer with DC Current Output
Cable Wiring of BA Series Current Tranducer with DC Voltage Output
Installed on 35mm standard DIN Rail
Fixed by Screw on Sheet Metal
