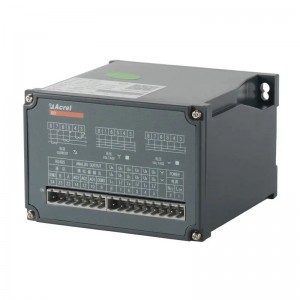

AC Voltage Transducer BD-4V3 (3-phase 4-wire)

short description:

● Measurement: 3-phase AC Voltage

● Accuracy: Class 0.5

● Input: 0~120V/0~300V/0~500V AC

● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC

● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC

● Wiring: 3-phase 4-wire

● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering

● Response Time: ≤400ms

● Installation: 35mm DIN Rail/Screw fixed

● Standard&Certificate: CE

Send email to us

Product Detail

Product Tags

Characteristic

Series Overview

Model Name	Measurement	Input	Output	Wiring
BA-AI	1-phase AC Current	0~1A AC/0~5A AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	1-phase 2-wire
BA-3I3	3-phase AC Current	0~1A AC/0~5A AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	3-phase 3-wire
BA-AV	1-phase AC Voltage	0~120/300/500V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	1-phase 2-wire
BA-3V3	3-phase AC Voltage	0~120/300/500V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	3-phase 3-wire
BA-4V3	3-phase AC Voltage	0~120/300/500V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	3-phase 4-wire
BD-DI	1-phase DC Current	4~20mA DC/0~20mA DC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	1-phase 2-wire
BD-DV	1-phase DC Voltage	0~75mV DC/0~10V DC /0~300V DC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	1-phase 2-wire
BD-3P	3-phase Active Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4P	3-phase Active Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-3Q	3-phase Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4Q	3-phase Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-3/P/Q/I	3-phase Active&Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4/P/Q/I	3-phase Active&Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-PF	3-phase Power-Factor	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-F	3-phase Frequency	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-3E	3-phase Multi-Parameters	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4E	3-phase Multi-Parameters	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire

Dimension

Model Name	Outline Size (mm)
Model Name	L	H	D	W	M
BD-AI	138	76	24	35	120
BD-AV	138	76	24	35	120
BD-DI	138	76	24	35	120
BD-DV	138	76	24	35	120

Model Name	Outline Size (mm)
Model Name	L	H	D	W	N
BD-3I3	110	75.4	128	35	111.7
BD-3V3	110	75.4	128	35	111.7
BD-4V3	110	75.4	128	35	111.7

Model Name	Outline Size (mm)
Model Name	L	H	D	W	N
BD-3P	110	75.4	128	35	111.7
BD-4P	110	75.4	128	35	111.7
BD-3Q	110	75.4	128	35	111.7
BD-4Q	110	75.4	128	35	111.7
BD-3P/Q/I	110	75.4	128	35	111.7
BD-4P/Q/I	110	75.4	128	35	111.7
BD-PF	110	75.4	128	35	111.7
BD-F	110	75.4	128	35	111.7
BD-3E	110	75.4	128	35	111.7
BD-4E	110	75.4	128	35	111.7
