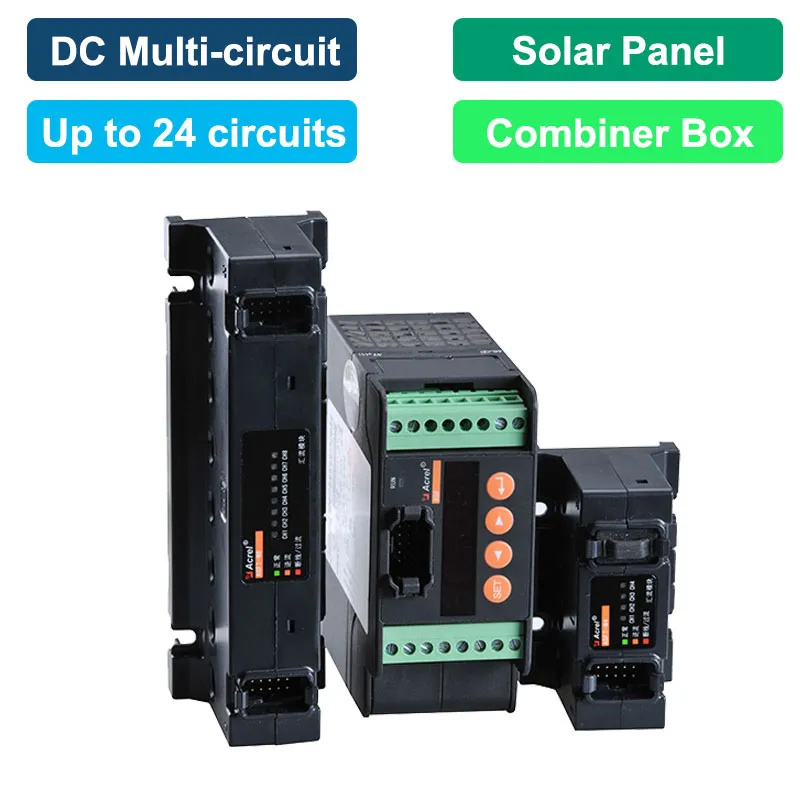

AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box
Characteristic
Solar Panel String Working Status and Efficiency Online Monitoring
Download-English Ver. [PDF 9.99MB]
Download-French Ver. [PDF 11.80MB]
Multi-circuits Measurement up to 24 DC Circuits
● Input Channel: up to 24 Circuits
● LED Indicator for Re-flux, Disconnection, Over-current
● Rated Current: 20A
● Accuracy: 0.5 Class
● Voltage Measuring Range: up to 1500V (Busbar)
3-Channel DI Switch Status Monitoring
● DI Status of Lightning Protector and DC CB
● Octocoupler or dry Contact
Temperature Measuring & Over-temperature Alarm Function
● Measuring the inner Temperature of DC PV Junction Box
● Thermistor: NTC
● Range of Measuring: -20℃~+100℃
Keypads HMI for Programming
● Communication(address, baud rate and etc.)
● Over-temp Alarm Threshold
LCD Display
● English Interface
● Data Display
Easy Installation

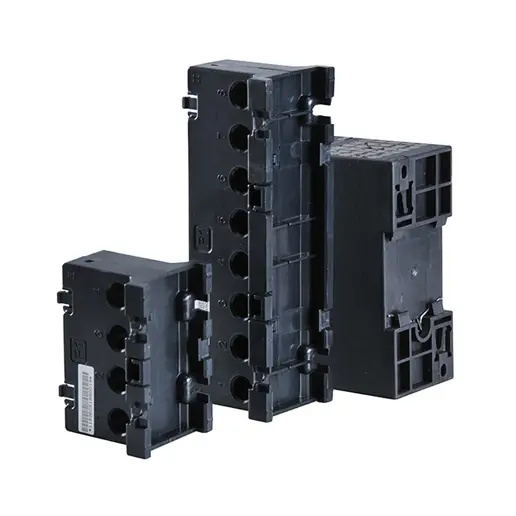

● Perforated Hole for Cable to pass through
● DIN Rail Installation
● Module Connected by Data Line
Wiring of Terminals
Cable Wiring through Perforation
Module Connected by Data Line
Solar PV Power Distribution Monitoring Solution
Practical Application of AGF-MxxT in PV Combiner Box
