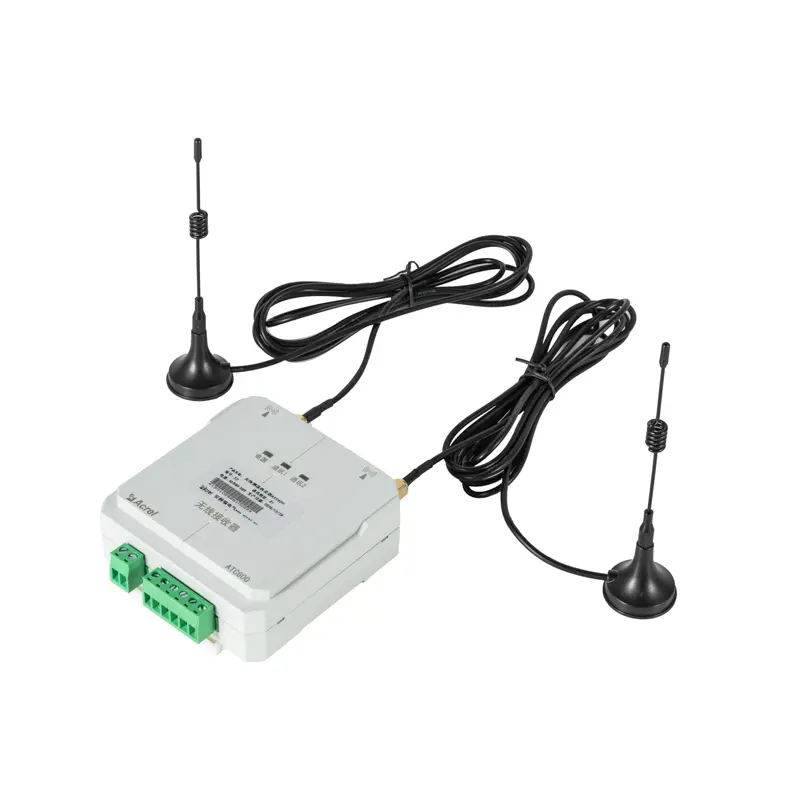

ATC600 Wireless Temperature Data Transceiver

● Receive Temperature Data: From up to 240 ATE Series Temperature Sensors

● Communication Methods: GFSK (with Temperature Sensors)

● Communication Distance: 1000m in open Area & 100m in Building

● Extra RS485 Communication: MODBUS-RTU

● DO Function: 2 Relay Output

● Dimension: 90*38*90mm (L*W*H)

● Installation: 35mm DIN Rail

● Power Supply: AC/DC 85~265V or DC12-48V

Product Detail

Remotely Receive Temp. Data from up to 240 ATE Series Wireless

● Communication Distance: 1000m in open area (with ATC600-Z relay)

● Communication Distance: 150m in open area (without ACT600-Z relay)

● Receive Temperature Measuring Data from: up to 240 ATE Series Temp. Sensors

DO Function

● 2 Passive Relay Output

● Capacity: 5A/AC 250V, 5A/DC 30V

Extra RS485 Communication

● Can be connected with ATP Temp. Display Device

● Protocol: MODBUS-RTU

● Communication Distance: 400m (in practical)

Optional Antenna Shape

● Chuck Antenna

● Baton Antenna

Items		Features
Transceiver ATC600	Power	AC/DC100~265V ≤6VA ≤8VA
	Power consumption	≤2W
	Points	≤240 points
	Resolution	0.1℃
	Range of temperature	-50℃~+125℃
	Accuracy	±1℃
	Wireless frequency	470M
	Distance	Transceiver sensor 150 m( open), repeaters distance 1 km( open)
	Communication port	RS485
	Protocol	MODBUS-RTU
	Baud(bps)	2400、4800、9600、19200
	Relay output	2 passive exits ,5 A/AC250V,5A/DC30V capacity
	Working environment	Temperature：-20 ℃～+55 ℃；Humidity≤95%
