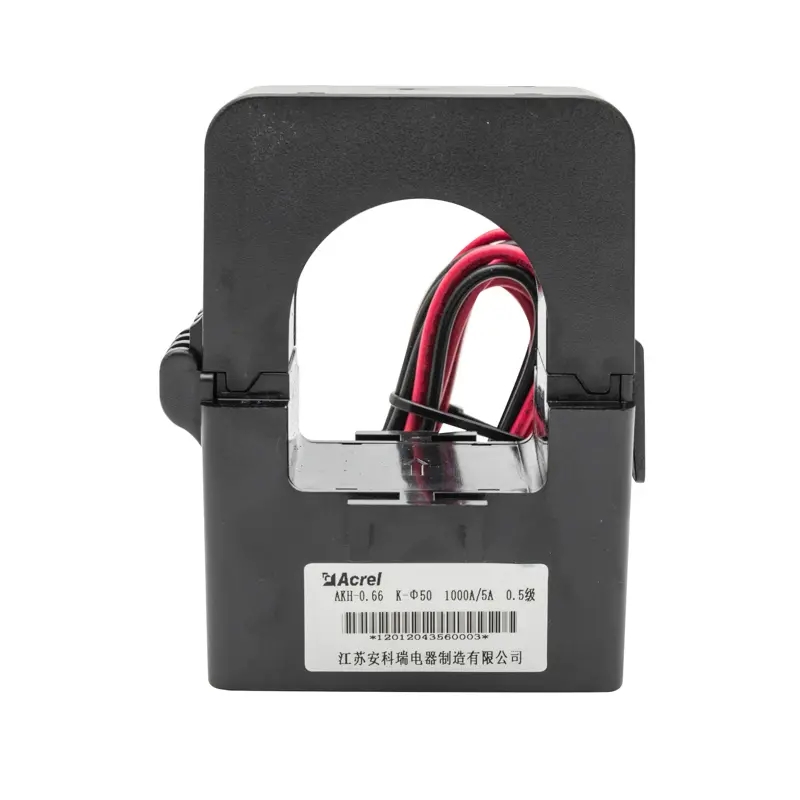

Split-Core-Stromwandler AKH-0.66K-φ50
| Modellname | Aktuelles Verhältnis (Primär/Sekundär) | Genauigkeitsklasse | Nennlast (VA) | Perforationslochgröße (mm) |
| AKH-0,66/K-φ10 | 5A/1,25mA | 0,5 | 10 | φ10 |
| (10~20)A/5mA | ||||
| (40~60)A/20mA | ||||
| AKH-0,66/K-φ16 | (20~50)A/10mA | φ16 | ||
| (40~100)A/20mA | ||||
| 100A/40mA | ||||
| AKH-0,66/K-φ24 | (60~200)A/20mA | φ24 | ||
| (100~250)A/40mA | ||||
| 400A/100mA | ||||
| AKH-0,66/K-φ36 | (100~200)A/10mA | φ36 | ||
| (200~400)A/20mA | ||||
| (300~600)A/100mA | ||||
| 400A/40mA | ||||
| 600A/75mA | ||||
| AKH-0,66/K-φ50 | (600~800)A/100mA | φ50 |
| Modellname | Umrissgröße (mm) | Perforationsgröße (mm) | Toleranz (mm) | |||||
| W | H | D | M | N | φ1 | φ2 | ||
| AKH-0,66/K-φ10 | 27 | 40 | 26 | 24 | 36 | 10 | 9 | ±1 |
| AKH-0,66/K-φ16 | 31 | 50 | 29 | 28 | 42 | 16 | 17 | |
| AKH-0,66/K-φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | |
| AKH-0,66/K-φ36 | 42,5 | 82 | 58 | 40 | 56 | 33.5 | 35 | |
| AKH-0,66/K-φ50 | 46,5 | 110 | 90 | 54 | 66,5 | 47 | 52 | |
Installationsanleitung vonAKH-0,66/K-φSplit-Core-Stromwandler der Serie
Baustellenanwendung vonAKH-0,66/K-φSplit-Core-Stromwandler der Serie
