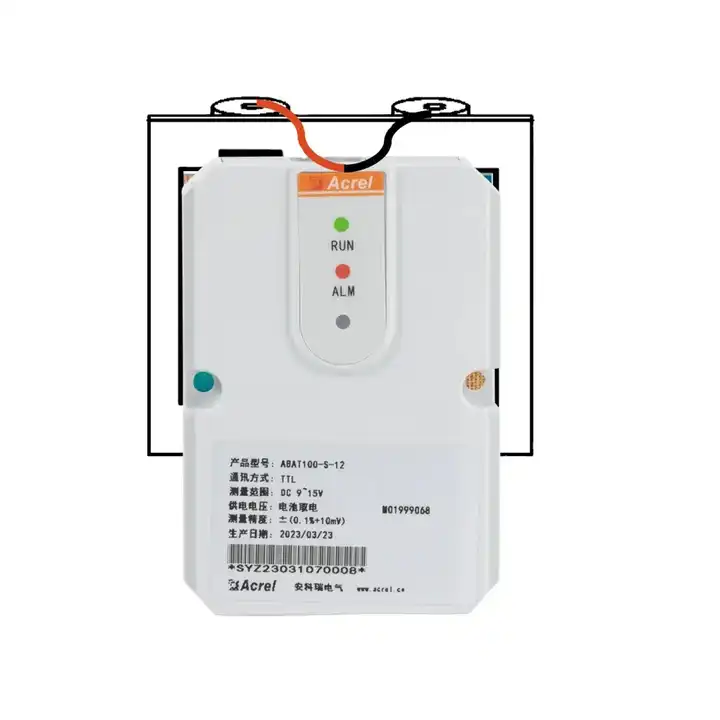

Acrel ABAT series Lead acid Battery String Monitoring System for BMS
●BMS for lead acid battery
●Modbus communication
●string battery monitor for 2V, 6V, 12V batteries
-
Split Core Current Transformer AKH-0.66K-φ10
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: 5~60A Output: 1.25-20mA
● Rated Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
-
AHKC-EKA Open-loop Hall Effect Transducer (Split-core)
● Rated Input: 0~±500A DC or 0~500A AC
● Rated Output: 0~±5/±4Vdc
● Aperture: φ20mm
● Power Supply: ±12~±15Vdc
● Accuracy: Class 1.0
● Response Time: ≤5us
● Installation: Clamp on (Split-core) measuring cable and screw fixed on panel
● Standard&Certificate: CE; IEC; LVD
-
AC Active Power Transducer BD-3P (3-phase 3-wire)
● Measurement: 3-phase AC Active Power (Range: 0~+866W)
● Accuracy: Class 0.5
● Input: 0~1A/0~5A AC and 0~100V/0~220V/0~380V AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485 (MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC
● Wiring: 3-phase 3-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
-
AC Current Transducer BD-AI (1-phase 2-wire)
● Measurement: 1-phase AC Current
● Accuracy: Class 0.5
● Input: 0~1A AC/0~5A AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485(MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V DC
● Wiring: 1-phase 2-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
-
AC Voltage Transducer BD-AV (1-phase 2-wire)
● Measurement: 1-phase AC Voltage
● Accuracy: Class 0.5
● Input: 0~120V/0~300V/0~500V AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485(MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V DC
● Wiring: 1-phase 2-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
-
BR Rogowski Coil Transducer
Measurement
- Rogowski coil and RMS measurement
- Super-current measurement, direct measurement up to 30000A
- Overload: 1.2 times of rated value
Application
- Industrial automation
- Metallurgical and electroplating
-
AHKC-EKC Open-loop Hall Effect Transducer (Split-core)
● Rated Input: 0~±1500A DC or 0~1500A AC
● Rated Output: 0~±5/±4Vdc
● Aperture: φ55mm
● Power Supply: ±12~±15Vdc
● Accuracy: Class 1.0
● Response Time: ≤5us
● Installation: Clamp on (Split-core) measuring cable and screw fixed on panel
● Standard&Certificate: CE; IEC; LVD
-
AHKC-EKB Open-loop Hall Effect Transducer (Split-core)
● Rated Input: 0~±1000A DC or 0~1000A AC
● Rated Output: 0~±5/±4Vdc
● Aperture: φ40mm
● Power Supply: ±12~±15Vdc
● Accuracy: Class 1.0
● Response Time: ≤5us
● Installation: Clamp on (Split-core) measuring cable and screw fixed on panel
● Standard&Certificate: CE; IEC; LVD
-
Split Core Current Sensors For Busbar AKH-0.66-K
● Split core current transformer
● Easy to install without power off
● Suitable for electricity renovation project
-
Split Core Current Transformer AKH-0.66K-φ16
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: 20~100A Output: 10-40mA
● Rated Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
-
Split Core Current Transformer AKH-0.66K-φ24
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: 150~300A AC
● Rated Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
