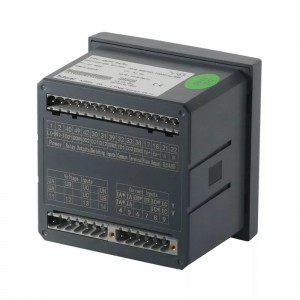

Three-phase AC Multi-function Panel Energy Meter AMC96L-E4KC
Characteristic
PIN Overview
Panel Overview
Main Parameters
Outline Dimension
Cut-out Dimension
About Packagement
|
Packaging Overview (Minimum) |
 |
 |
|
Packing Dimension and Weight (Minimum) |
Minimum Package Contain 1 pcs Products Dimension: 280mm*245mm*200mm |
Total N.W. (1 pcs) 0.74 KG |
|
Packing Dimension and Weight (Large) |
Large Package Contain 36 pcs Products Dimension: 535mm*525mm*475mm
|
Total N.W. (36 pcs) 13.82 KG |
|
Average Lead Time |
Manufacturing: 3~4 days (If paired with system need extra 1~2 days for adjustment) |
Shippment: 8~9 days (World Wide Shipment) |
|
Product HS Code |
9028301400 |
|
|
CO Country of Origin |
China |
|
AC Voltage Signal (400V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (400V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)
 |
1. Cut out a hole on the object on where we will intall the meter according to dimension of meter referred above.
2. Remove the buckle on the meter off. |
 |
3. Install the meter into the cut-out hole.
4. Buckle up and fixed the meter. |
